| B/F系列產品 | ||||
| 1 法國品牌，軍工品質 France brand,military quality 3 先進的機組安保系統 Advancde gen-sets security system 5 適合多種應用場景的結構/功能解決方案 Professional structure/function solution for varieties of scenarios | 2 行業先進的產品性能指標 Excellent product performance indicators leading industry 4 專業的發電機組應用集成能力 Professional application & integration capabilities for gen-sets 6 具備國內各類產品認證資質以及CE認證 Have kinds of domestic product certification and CE certification | |||

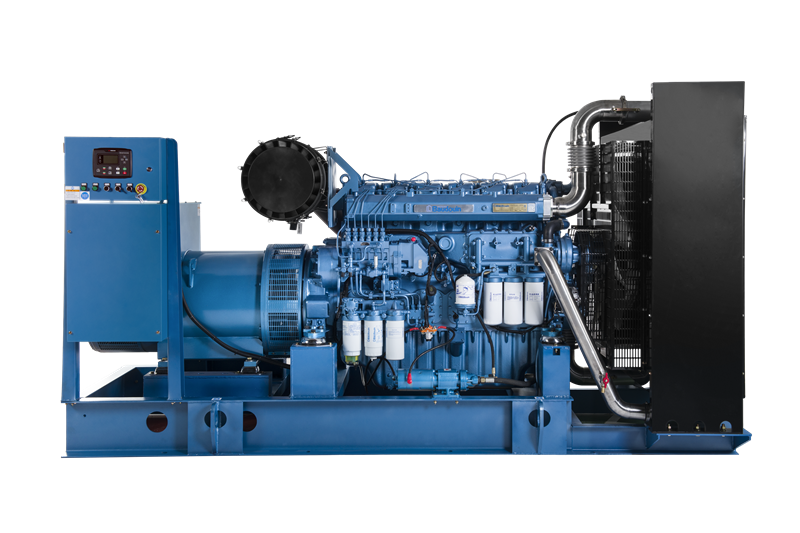

| 機組型號Gensets Model | WPG495B7 | WPB550B7 | WPG632.5B7 | WPG687.5B7 |
| 額定功率/容量(kW/kVA) Rated Power/Capacity | 360/450 | 400/500 | 460/575 | 500/625 |
| 備用功率/容量(kW/kVA) Standby Power/Capacity | 396/495 | 440/550 | 506/632.5 | 550/687.5 |
| 發動機型號Engine Model | 6M26D447E200 | 6M26D484E200 | 6M33D572E200 | 6M33D605E200 |
| 額定功率(kW)Rated Power | 406 | 440 | 520 | 550 |
| 備用功率（kW）Standby Power | 447 | 484 | 572 | 605 |
| 氣缸數-缸徑×行程 Cylinder No.-Bore×Stroke | 6-150X150 | 6-150X185 | ||
| 排量（L）Displacement | 15.9 | 19.6 | ||
| 啟動方式Starting Method | DC24V電啟動 Electrical Starting | |||
| 調速方式Speed Governor | 電子調速/電控 Electronic/ECU | |||
| 進氣方式Intake Way | 增壓中冷 Turbo & Inter-cooling | |||
| 機油容量(L)Oil Capacity | 50 | 60.5 | ||
| 冷卻液容量（L） Coolant Capacity | 110 | 127 | ||
| 經濟燃油消耗率(g/kW.h) Economic Fuel Consumption | 197 | 197 | ||
| 額定電壓（V）Rated Voltage | 400/230 | 400/230 | ||
| 頻率(Hz)Frequency | 50 | 50 | ||
| 額定電流(A)Rated Current | 650 | 722 | 830 | 902 |
| 額定功率因數Rated Factor | 0.8（滯后lag） | 0.8（滯后lag） | ||
| 相數及接法 Phase No.& Connection | 三相四線，星型接法 3P4W,Y Style Connection | |||
| 調壓方式 Voltage Regulation Mode | 自動調壓AVR | |||
